Dent Pulling System DA-3

BROCHURE

COMPONENT LIST

MANUAL

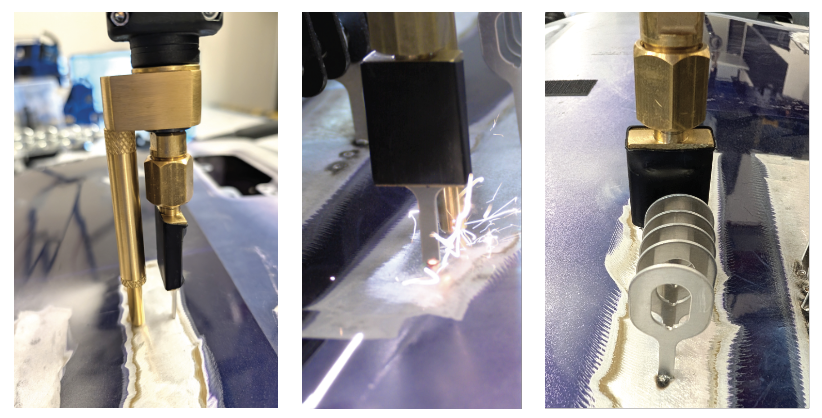

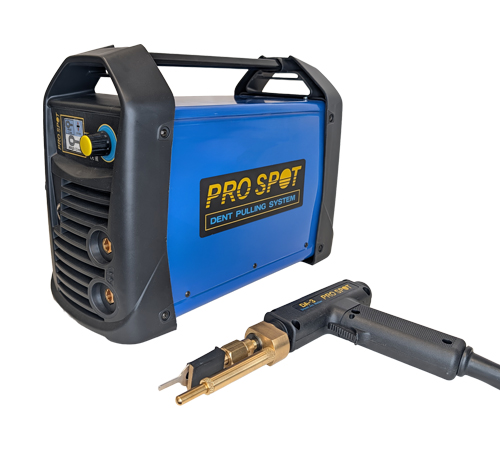

The Pro Spot DA-3 Synergic Drawn Arc welder easily applies pulling keys and threaded studs so that various tools can be used to pull dents from steel and aluminum panels. With specific programs for both steel and aluminum, the DA-3 features:

• Different functions for a variety of repair procedures

• Color graphics screen for easy and intuitive set up

• Customizable and storable weld programs

• SD card memory to update and add programs

• Extremely lightweight

The DA-3 has a wide range of configurations to best fit your shop’s needs. It can be added to a weld cart or even a Mobile Weld or Dent Pulling station for additional functionality, mobility and storage.

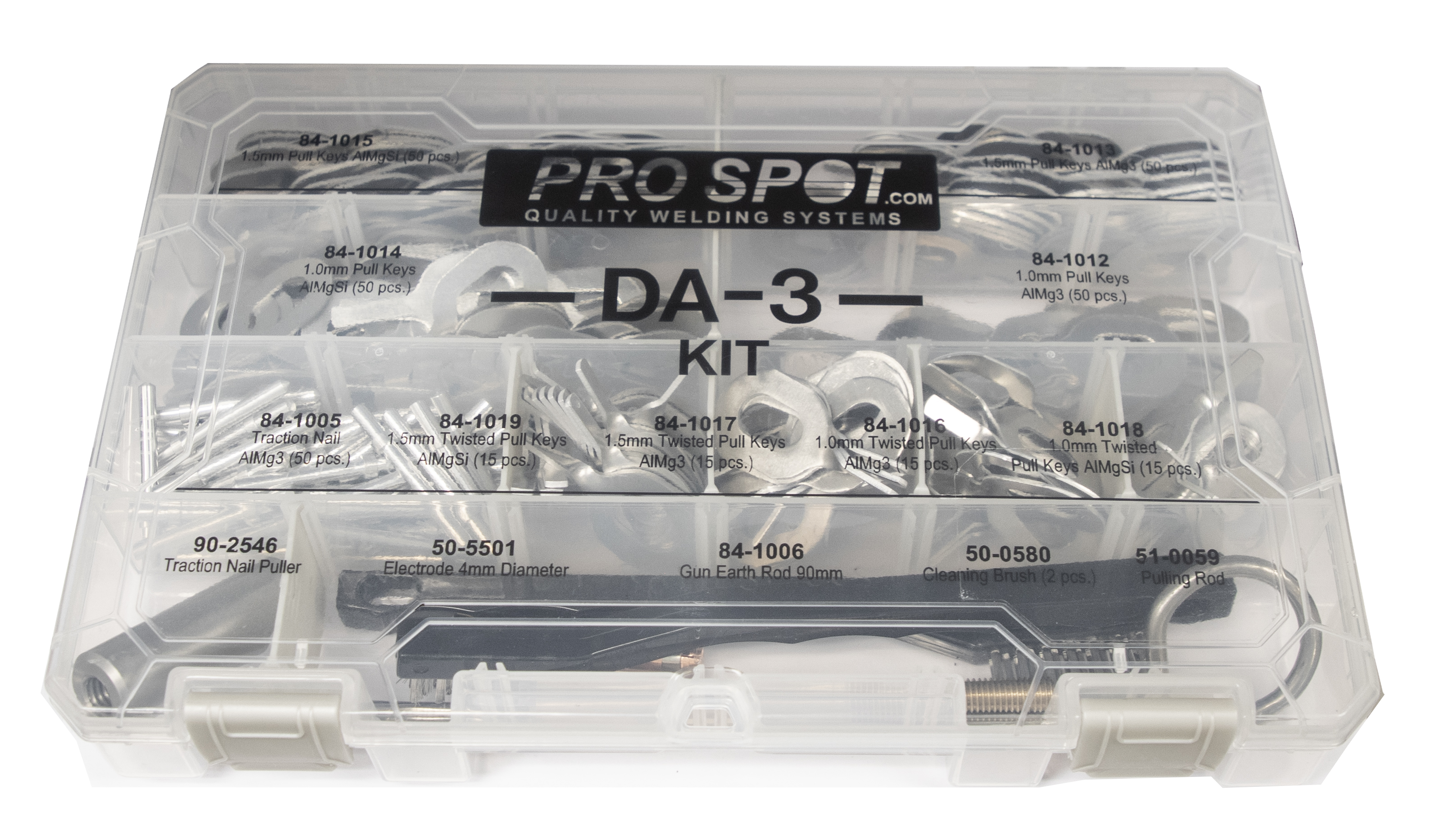

DA-3 KIT SA-0815 ACCESSORIES

(INCLUDED)

84-1012: Pull Keys AlMg3 1.0mm 50pcs.

84-1013: Pull Keys AlMg3 1.5mm 50pcs.

84-1014: Pull Keys AlMgSi 1.0mm 50pcs.

84-1015: Pull Keys AlMgSi 1.5mm 50pcs.

84-1016: Twisted Pull Keys AlMg3 1.0mm 15pcs.

84-1017: Twisted Pull Keys AlMg3 1.5mm 15pcs.

84-1018: Twisted Pull Keys AlMgSi 1.0mm 15pcs.

84-1019: Twisted Pull Keys AlMgSi 1.5mm 15pcs.

50-0580: Cleaning Brush 2pcs.50-5501: Electrode 4mm Diameter

84-1006: Ground Rod 90mm for keys & traction nail applications

51-0059: Pulling Rod
