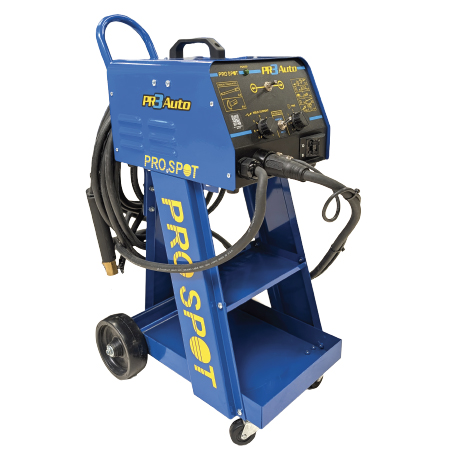

PR-3 MULTI TASK AUTOMATIC STEEL DENT REPAIR SYSTEM – Pro Spot International

The PR-3 Auto senses when a weld tip or pull key has made contact and welds automatically after a short delay.

Technical Specifications:

Input Power: 1 Phase 208-230V or 400V
Input Amperage: 24A
Input Cable: 30’ (9m)
Output Amperage: 2,000A Max (at tips)
Welding Cable: 8’ (2.5m)
Welding Cable/T-Dent: 8’ (2.5m)
Dimensions: 18x14x12in.

The Auto feature is very quick and user friendly due to the fact that it does not weld instantly like other higher priced systems on the market. Electrodes that can be used with the Auto-Mode include:

Pull Key Electrode (PS-880)
4mm Stud Holder Electrode (PS-820)
6mm Stud Holder Electrode (PS-839)
Washer Adapter (PS-840)
Rivet Holder (PS-870)
Spot Hammer Assembly (CLP-70)
Weld-on Shaft Dent Pulling Kit (CLP-110)
Weld-on Shafts (SA-0153, SA-0152, SA-0151)

By using weld keys, the user is able to pull a larger area all at once. They are also usefull for pulling out creases. When the keys are welded in a crease and the metal rod is inserted through the group of keys, the low portion of the crease will be pulled first and the entire crease pulled evenly flat. Used with the Pro Pull Single Pull or Pull Bar.

auto weld pull keys

AUTO WELDING

pull bar dent pulling

PULL BAR DENT PULLING

AUTO WELDING

PULL BAR DENT PULLING
