Universal flat tabs are mainly used for larger flat damage and deeper hail dents. The kit is equipped with a variety of sizes and pull connectors.
Universal Flat Tab Sizes
|

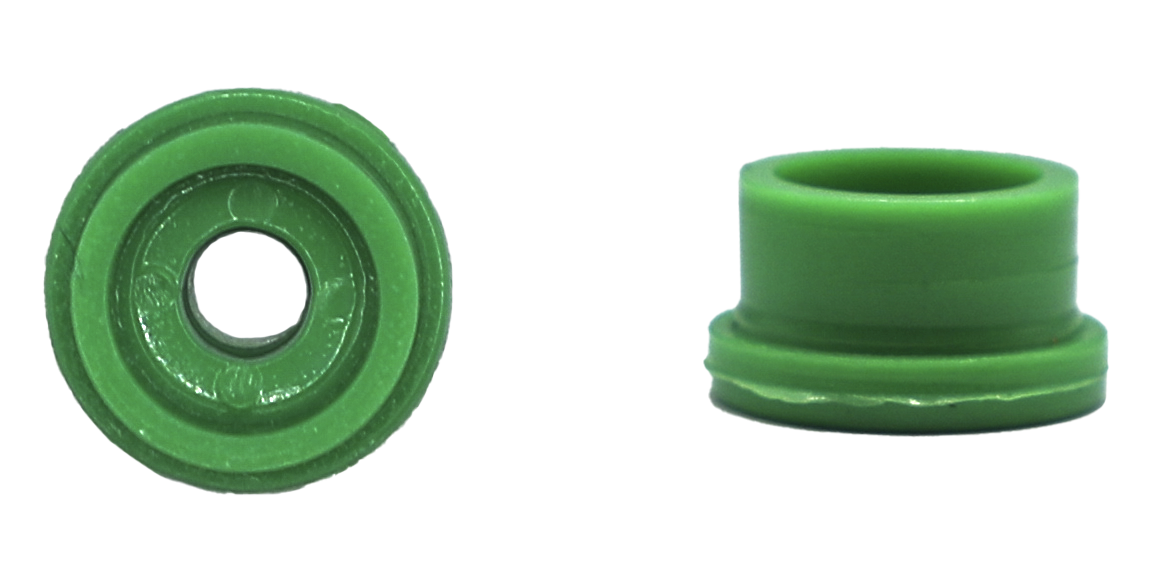

84-8051 - 0.5" |
|

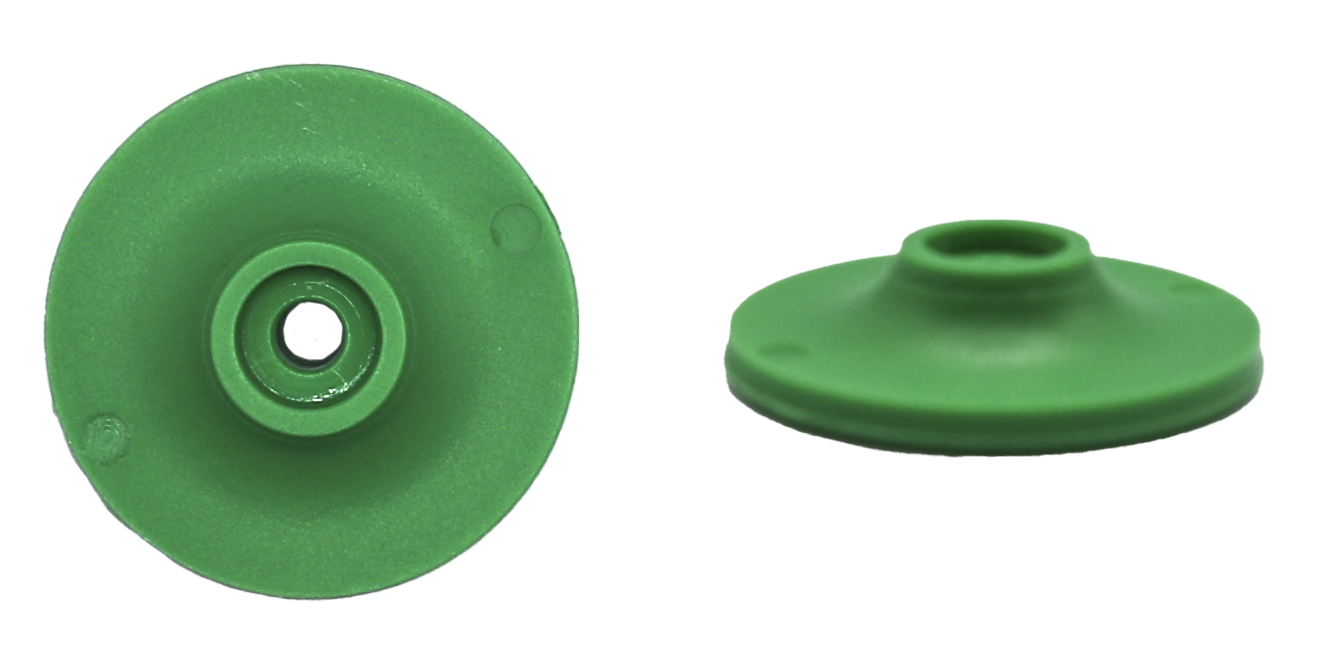

84-8054 - 1.25" |
|

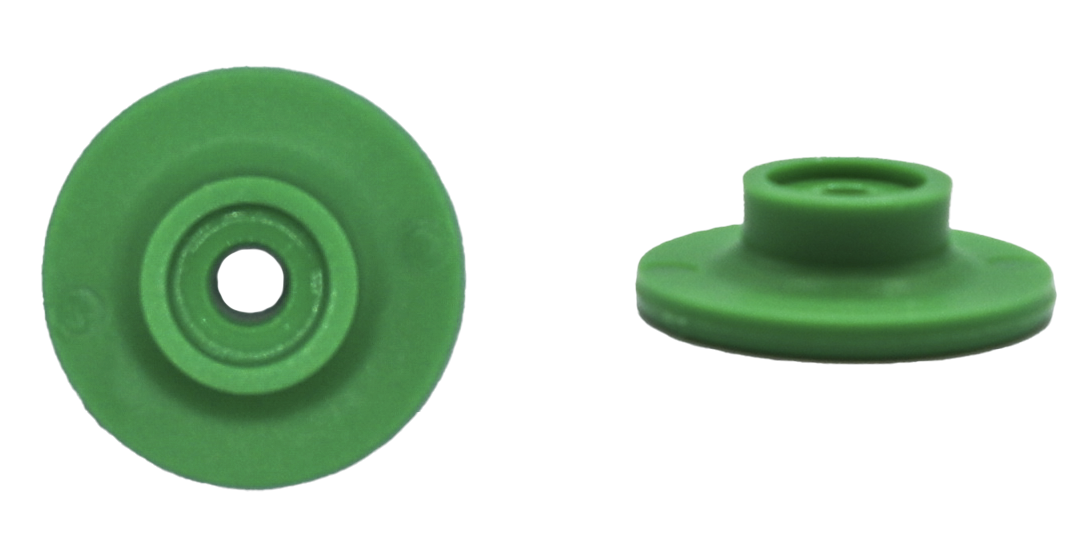

84-8052 - 0.9"
|
|
84-8055 - 1.5"
|
|

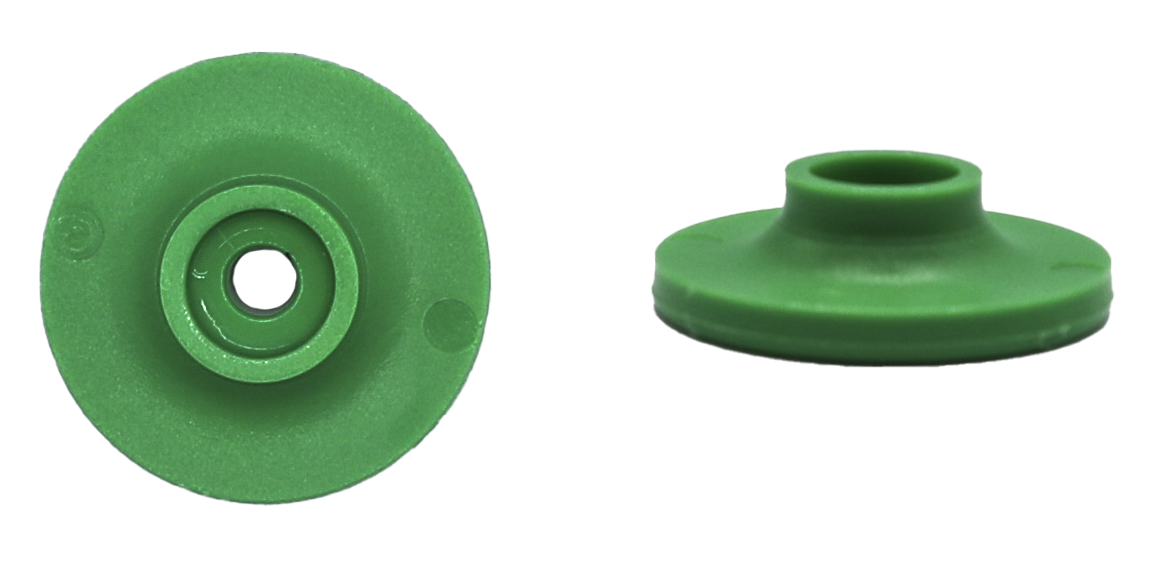

84-8053 - 1" |
|
84-8056 - 2" |
|
|
|
How it WorksUniversal Flat tabs work together with weld studs (50-1321 - M4X10) inserted through the bottom of the tab and Pull Tabs (90-0176) or Thread-on Tab Knobs (84-8057) screwed on top. When choosing a tab for dent removal, it is important to consider the size of the dent. Ensure that the selected tab is slightly smaller than the affected area. |
|
1. Apply glue at the bottom of a tab and place it on the dent. 2. Wait for at least 4 minutes for glue to dry. 3. Use Pro Pull with either Knob Puller (90-2546) for tab knob (84-8057) or hook attachment for pull tab (90-0176). |
Pulling Accessories for Universal and Hybrid Tabs
|
|
|
|
|
|
PS-220 Weld Stud |
50-1321 M4 Weld Stud |
90-0175 Pull Tab |
80-8057 Tab Knob |
|
|

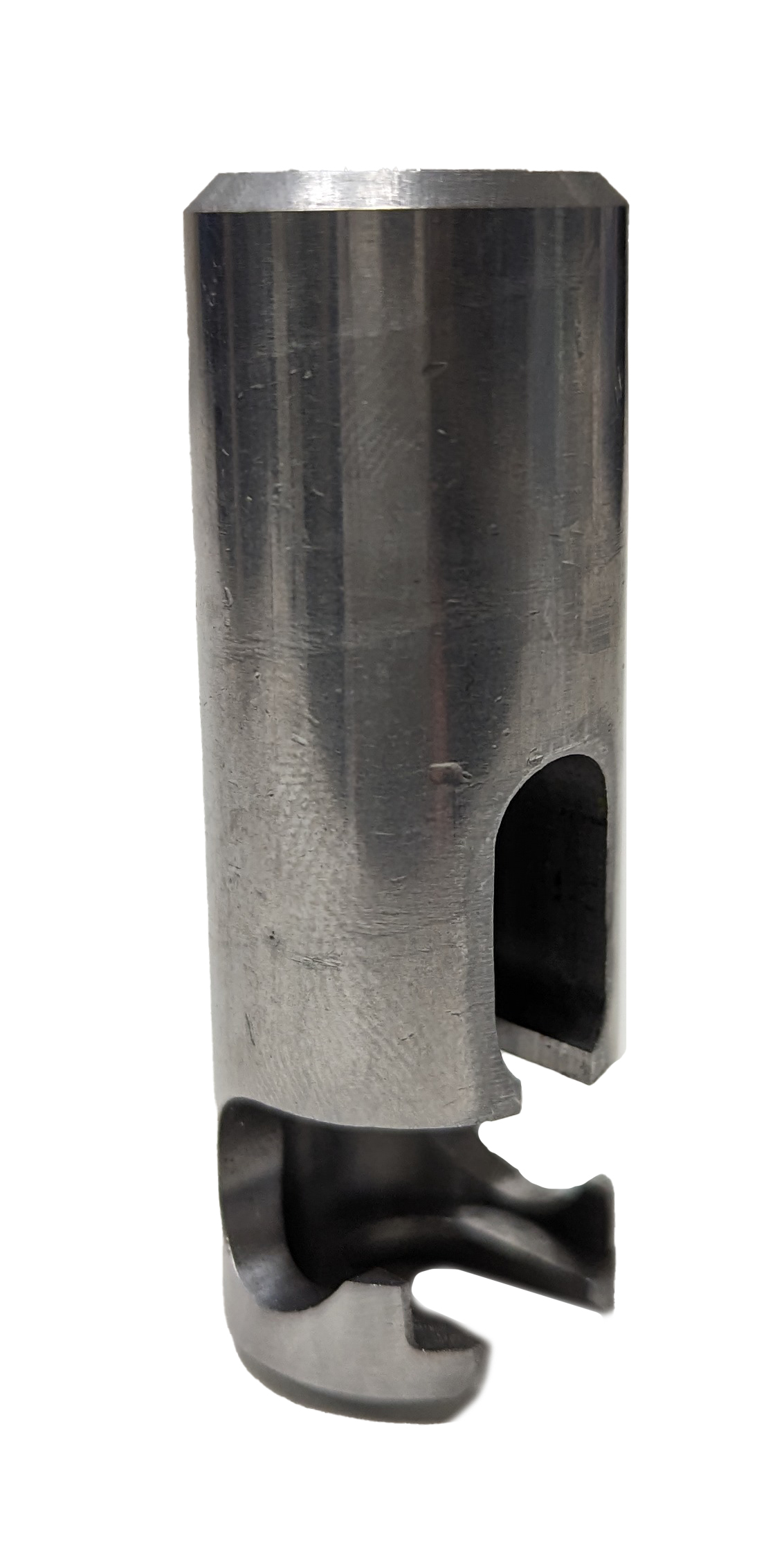

Newly designed traction nail and knob puller (90-2546) was created specifically for the thread-on tab knobs.
|
