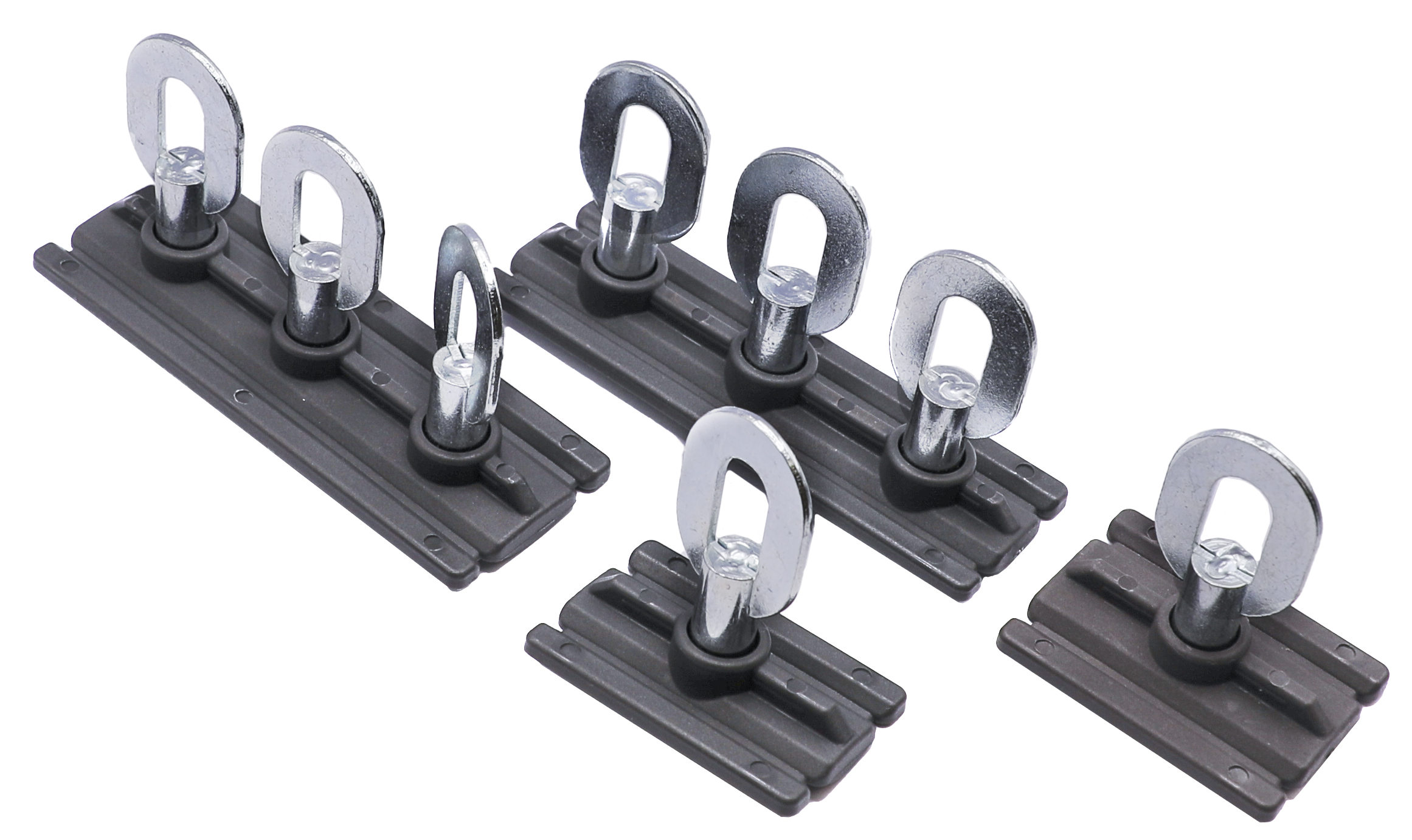

The 3D Tabs are heavy duty and meant to be used for stronger areas, such as rocker areas and cab corners. They come with single-pull and 3-pull options with two different glue pad widths to choose from.
3D Tabs Sizes
84-8031 3D Single-Stud Tab 1.3" X 2" |
84-8032 3D Single-Stud Tab 1.5" X 2" |
84-8033 3D Single-Stud Tab 1.3" X 4" |
84-8034 3D Single-Stud Tab 1.5" X 4" |
3D tabs work with Weld Studs (50-1322) and Pull Tabs (90-0177).
90-0177 Pull Tabs M6 |
50-1322 Weld Stud M6x16 |

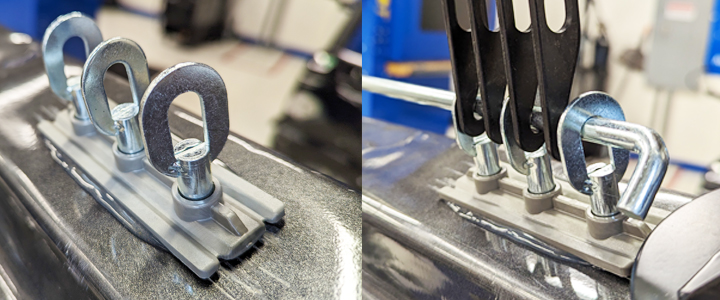

Application
1. Make sure to select the right size tab for the damage
2. Thread the weld stud at the bottom and attach pull tab on top.
3. Apply hot glue on the bottom of the tab and place it on the dent
4. Wait for 4 minutes for glue to cure
5. For multi-stud tabs use the rod from the pull rod kit PRO-PRX4
6. Use the pull bar with 4-hook attachment for 3-Stud tabs or Pro-65 with a single hook attachment for Single-stud tabs.
