Concave and Convex Tab |
||
84-8026 Concave 7/8"-1-1/2" |
|
84-8025 Convex 7/8"-1-1/2" |
The compact and efficient concave tab is ideal for addressing minor damages that extend along a body line. This tab effectively preserves the structural integrity of the body line while enabling accurate and controlled pulling. | The convex single pull tab proves highly effective for addressing compact, non-rounded dents, particularly those with sharper edges or deeper depressions requiring a precise and forceful dent pull. | |
Flat Tabs |
||
84-8027 Flat, 7/8" X 2" |
|
84-8024 Flat, 7/8" X 1-1/2" |
Flat single tabs offer versatility in addressing various types of damage, including small flat dents as well as damage situated at the panel's edge. They prove effective in these scenarios, providing reliable pulling capabilities for a wide range of repair needs. | ||
Edge Tabs |
||
84-8028 Edge Tab 1"
|
|
The edge single pull tab excels in extracting damage located at the panel's edge. Its 90-degree lip securely holds onto the surface, enabling a precise and accurate pull. |

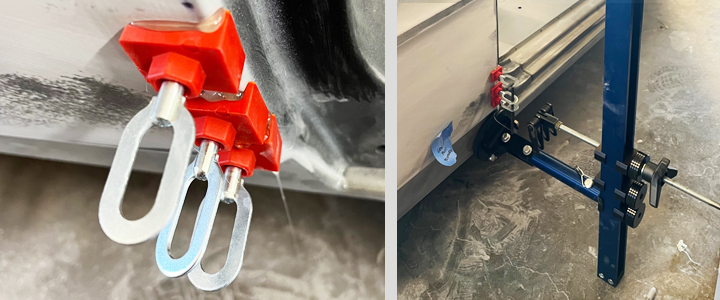

How it WorksRed Hybrid Tabs work together with weld studs (50-1321 - M4X10) inserted through the bottom of the tab and Pull Tabs (90-0176) or Thread-on Tab Knobs (84-8057) screwed on top. When choosing a tab for dent removal, it is important to consider the size of the dent. Ensure that the selected tab is slightly smaller than the affected area. |
Pulling Accessories for Hybrid and Universal Tabs
PS-220 Weld Stud |
50-1321 M4 Weld Stud |
90-0175 Pull Tab |
80-8057 Tab Knob |
|

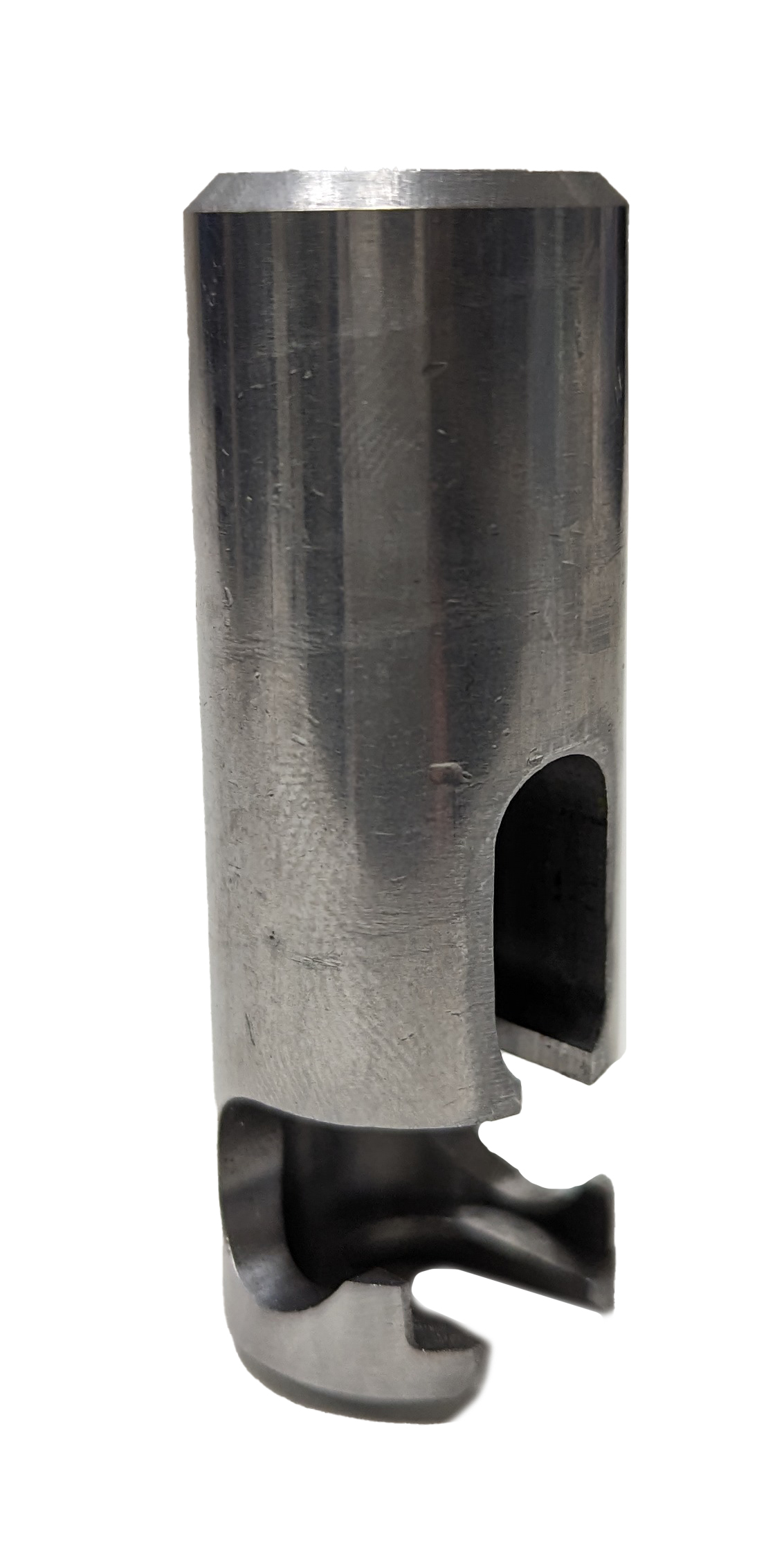

Newly designed traction nail and knob puller (90-2546) was created specifically for the thread-on tab knobs. |
