Sizes and Part Numbers
|
84-8021 7/8" Diameter |
84-8022 1" Diameter |
84-8023 1-1/2" Diameter |

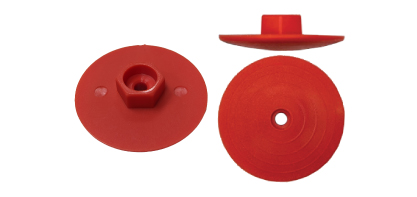

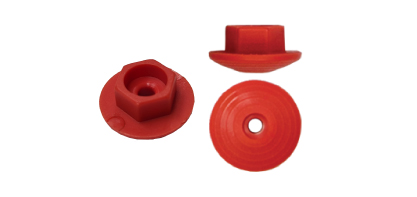

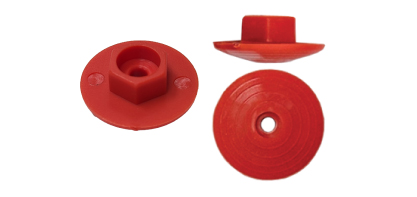

UsageThe round dome single pull tabs come in three diameters, specifically designed for different dent sizes. These tabs are particularly effective for addressing small, round, and soft dents caused by hail or an occasional errant golf ball. |
How it WorksRed dome tabs work together with weld studs (50-1321 - M4X10) inserted through the bottom of the tab and Pull Tabs (90-0176) or Thread-on Tab Knobs (84-8057) screwed on top. When choosing a tab for dent removal, it is important to consider the size of the dent. Ensure that the selected tab is slightly smaller than the affected area. |

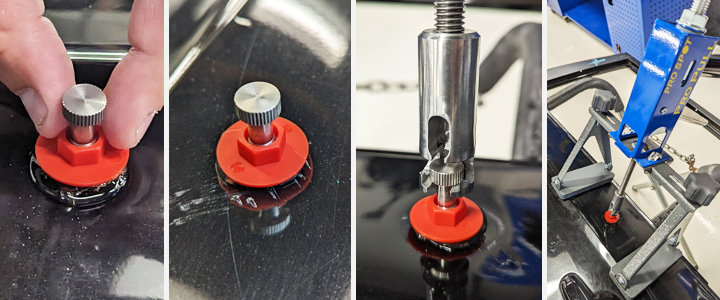

1. Apply glue at the bottom of a tab and place it on the dent.
2. Wait for at least 4 minutes for glue to dry.
3. Use Pro Pull with either Knob Puller (90-2546) for tab knob (84-8057) or hook attachment for pull tab (90-0176).
Pulling Accessories for Hybrid and Universal Tabs
|
|
|
|
|
|
PS-220 Weld Stud |
50-1321 M4 Weld Stud |
90-0175 Pull Tab |
80-8057 Tab Knob |
|
|

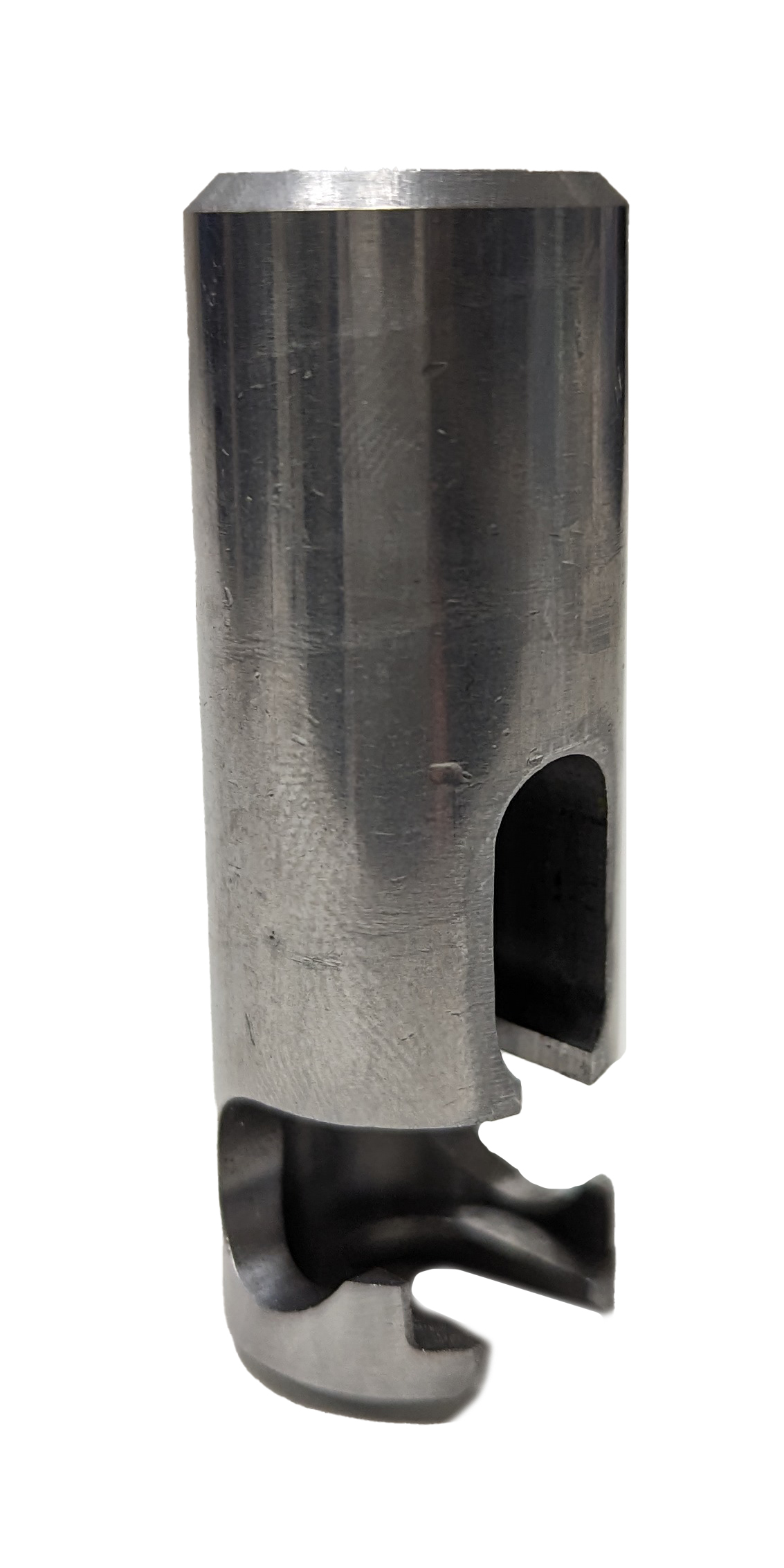

Newly designed traction nail and knob puller (90-2546) was created specifically for the thread-on tab knobs. |
